These are thumbnail copies of photos related to my 1979 Catalina 25 sailboat for sale. Click on each image to see a larger version. Use links in the table of contents above to more easily navigate this webpage.
Click image to enlarge.

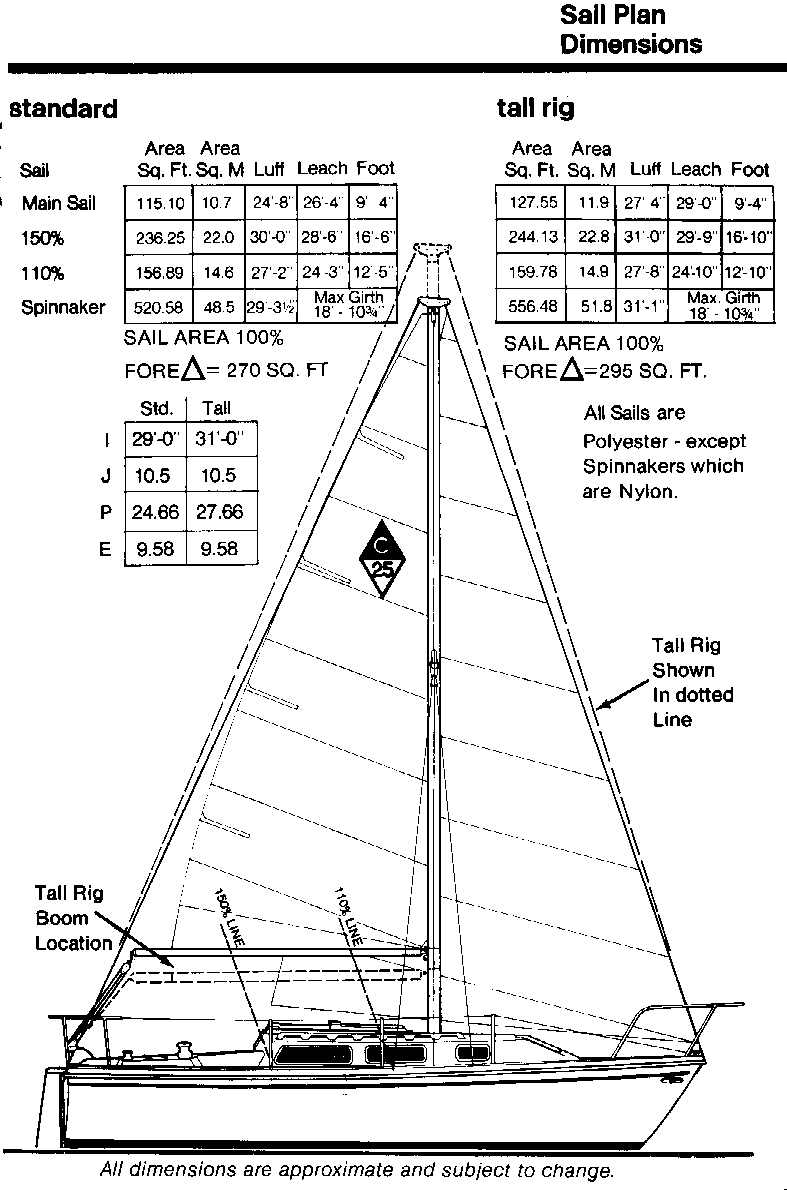

For your convenience, here are the basic specifications for the boat, in case you're not familiar with this model.

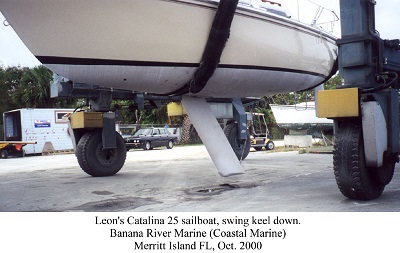

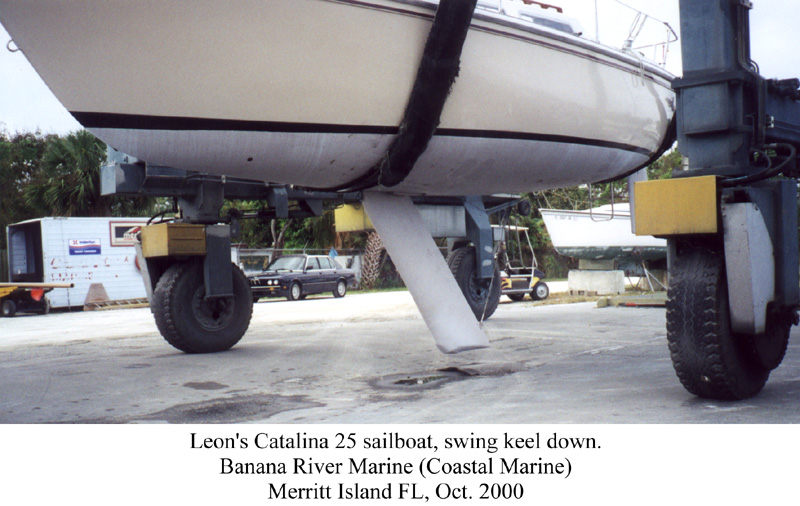

Boat on travel lift with swing keel down.

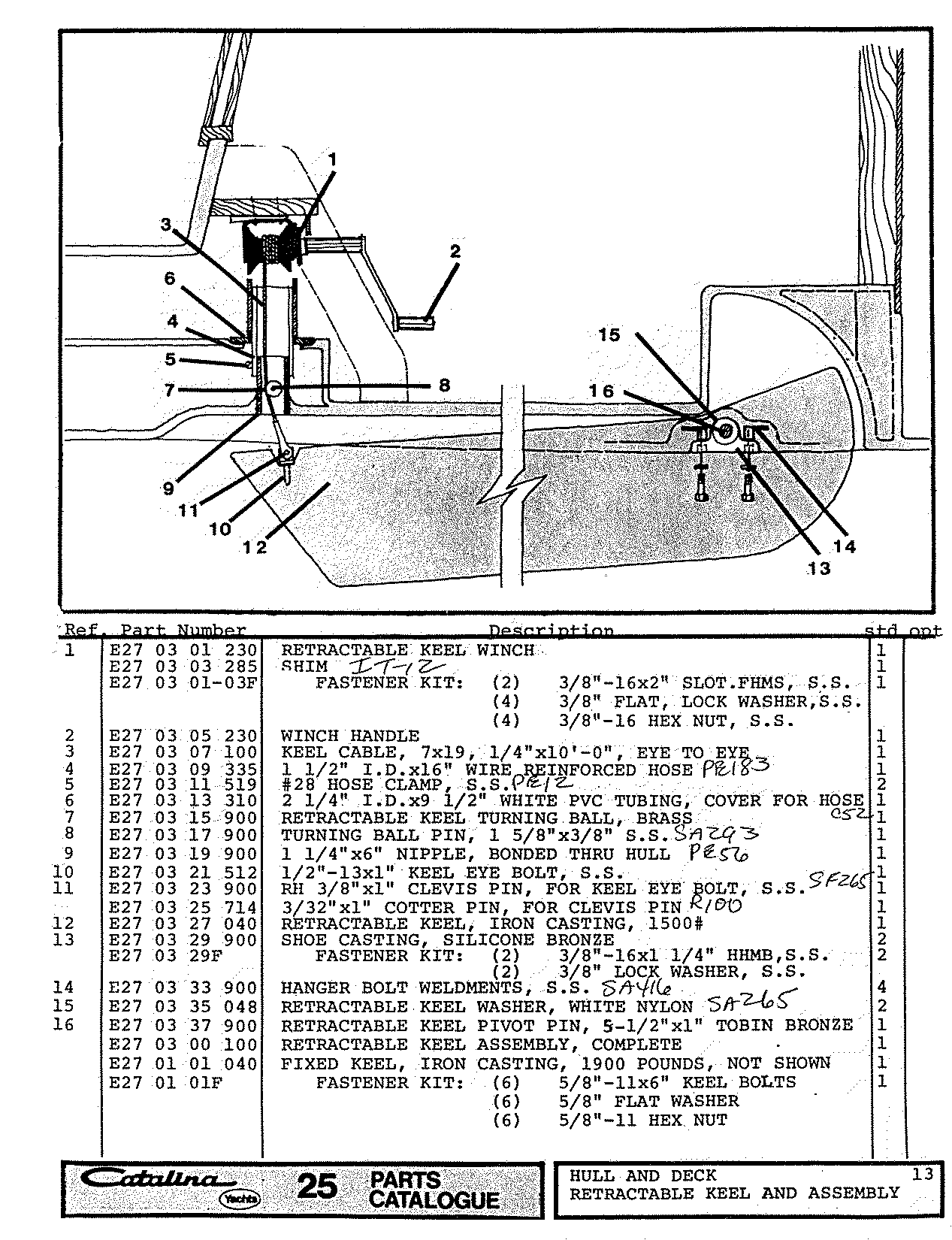

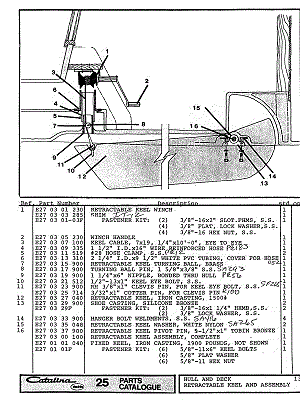

Good illustration of swing keel system parts.

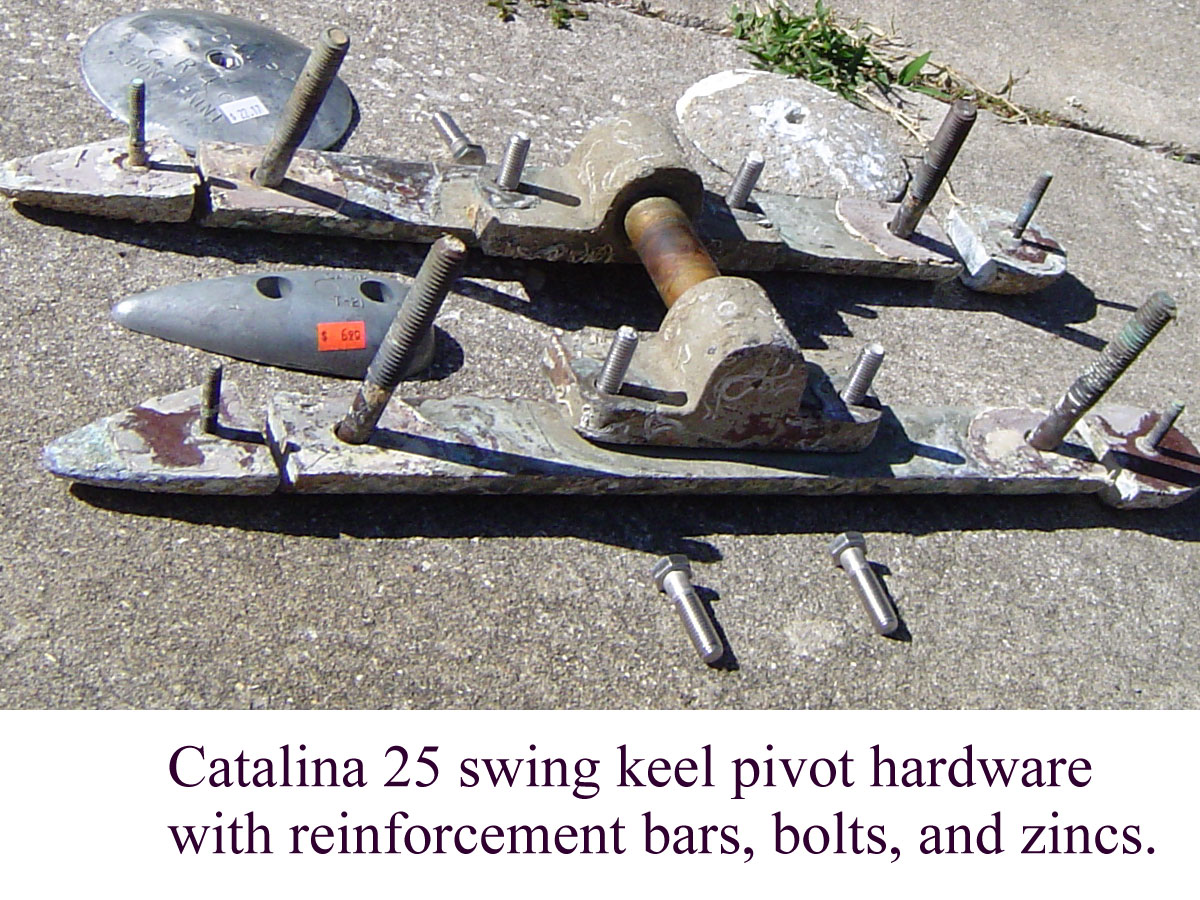

Photo of modified swing keel pivot hardware and zincs.
Top view of swing keel pivot reinforcement hardware being assembled.

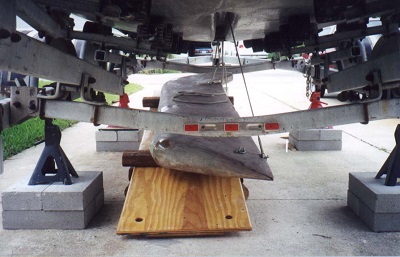

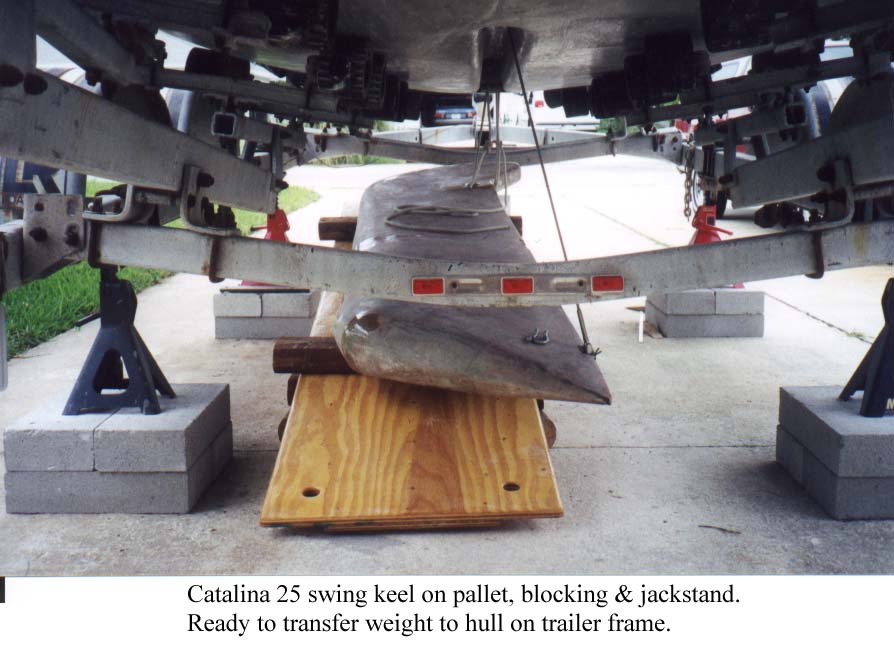

Swing keel being reinstalled under boat on trailer.

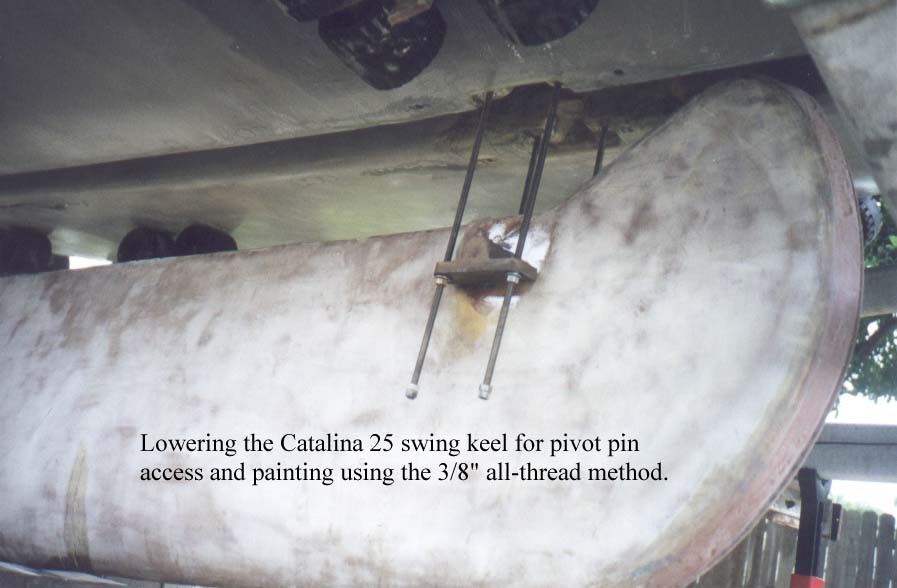

Photo of all-thread method of servicing pivot end of swing keel.

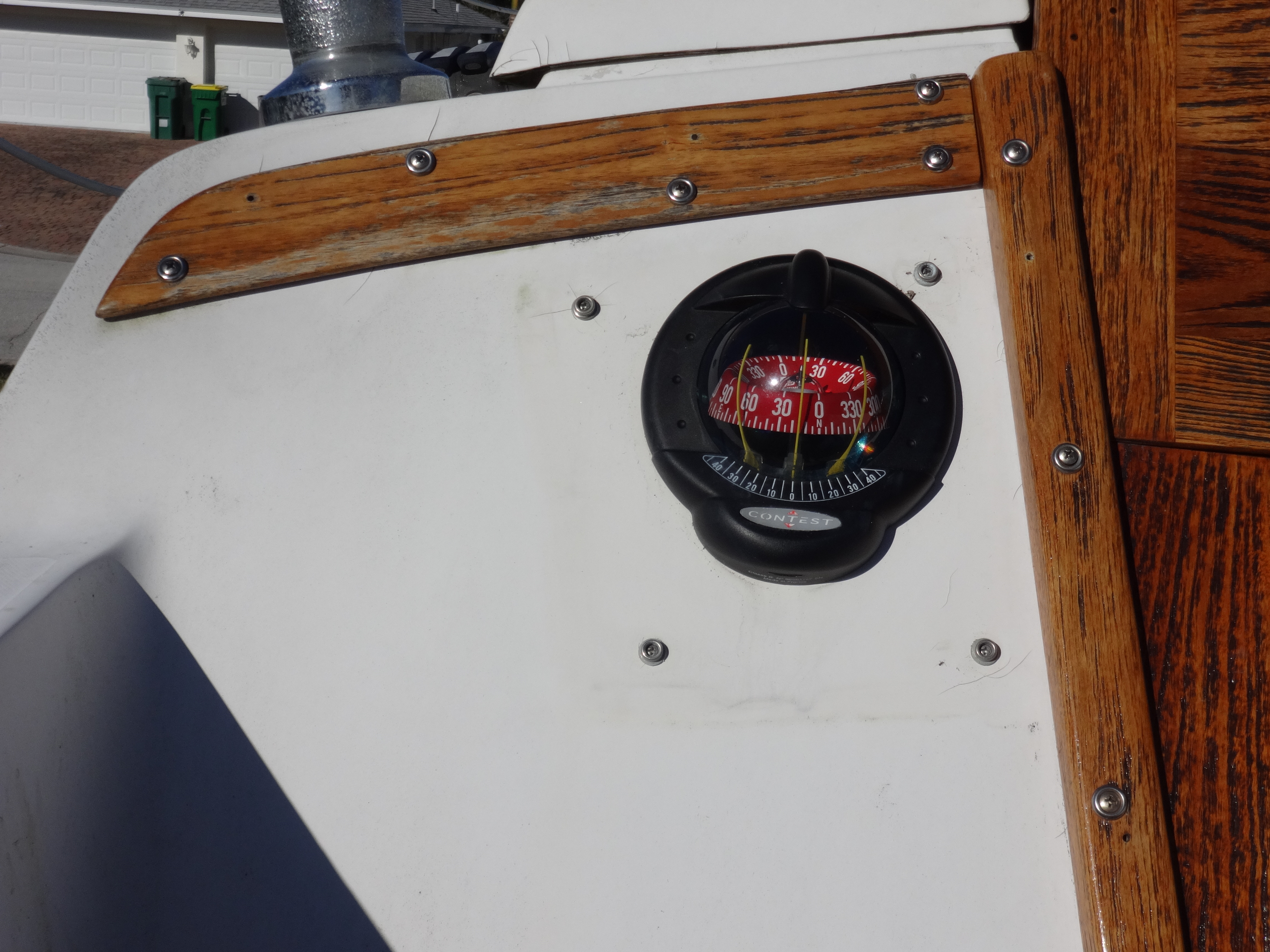

Contest 101 compass with lighting.

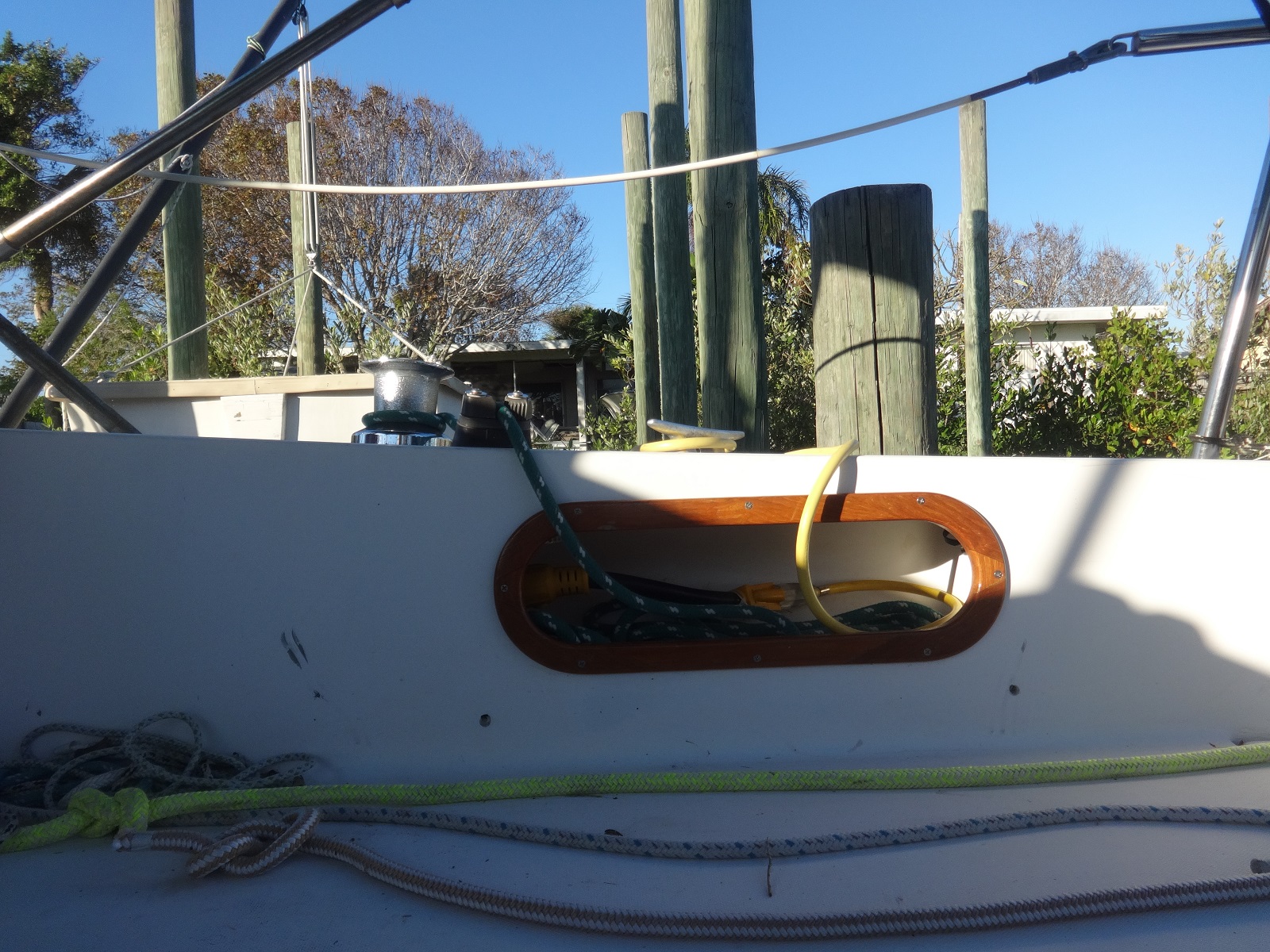

Cockpit coaming pockets from a Catalina 22 have been added, similar to later model Catalina 25.

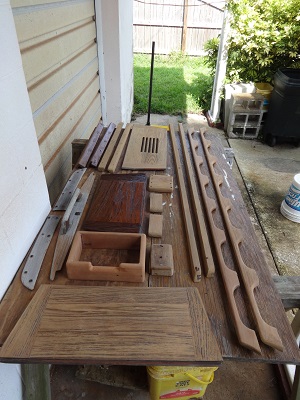

Exterior teak removed for refinishing.

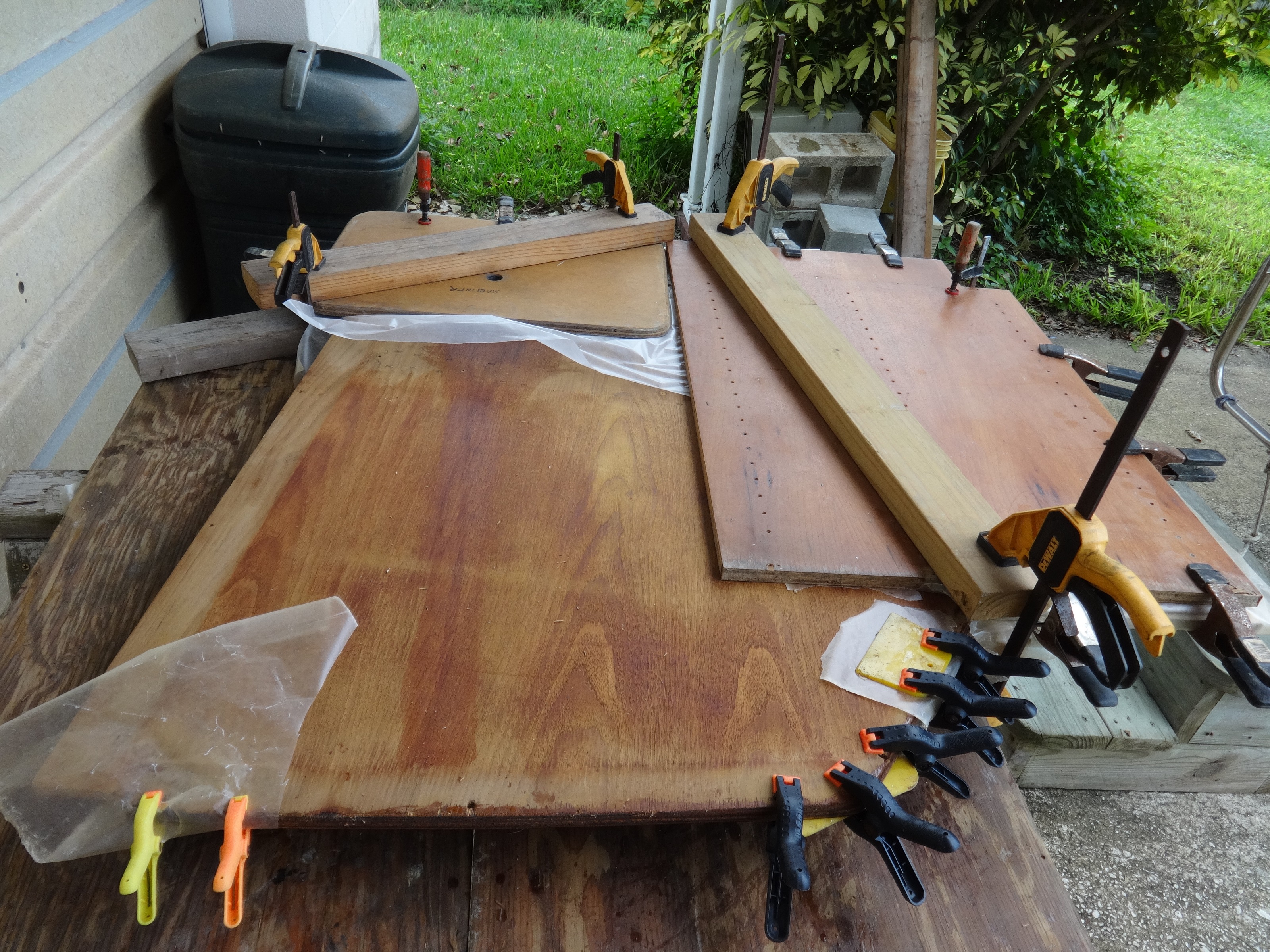

Repairing main bulkhead teak veneer delamination caused by water damage. Relaminated using epoxy prior to refinishing with 4 coats of marine varnish.

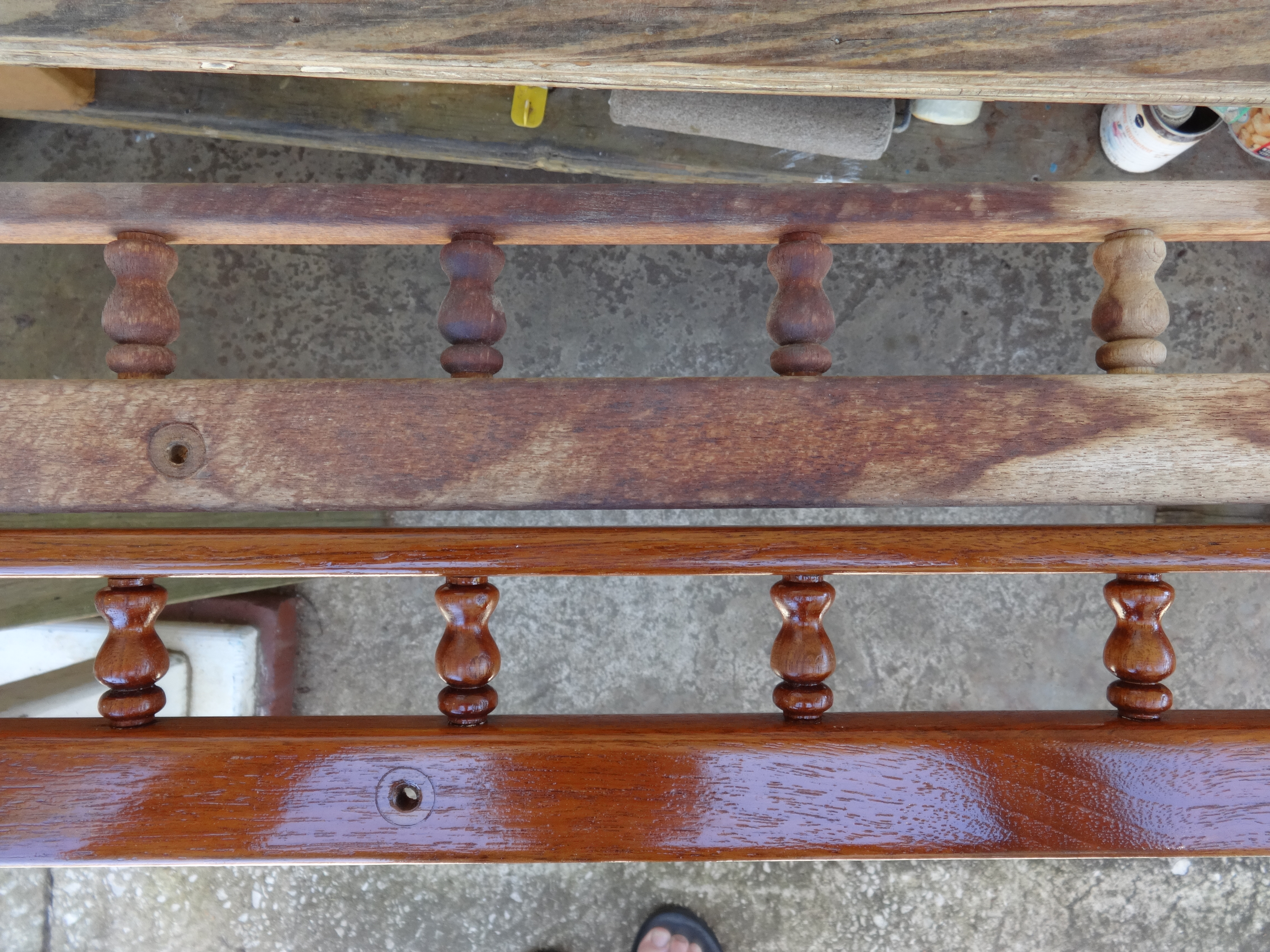

Example of fiddle rail before and after disassembly, refinishing, and reassembly. Spindles were individually sanded in a lathe before dipping in varnish.
Galley Area

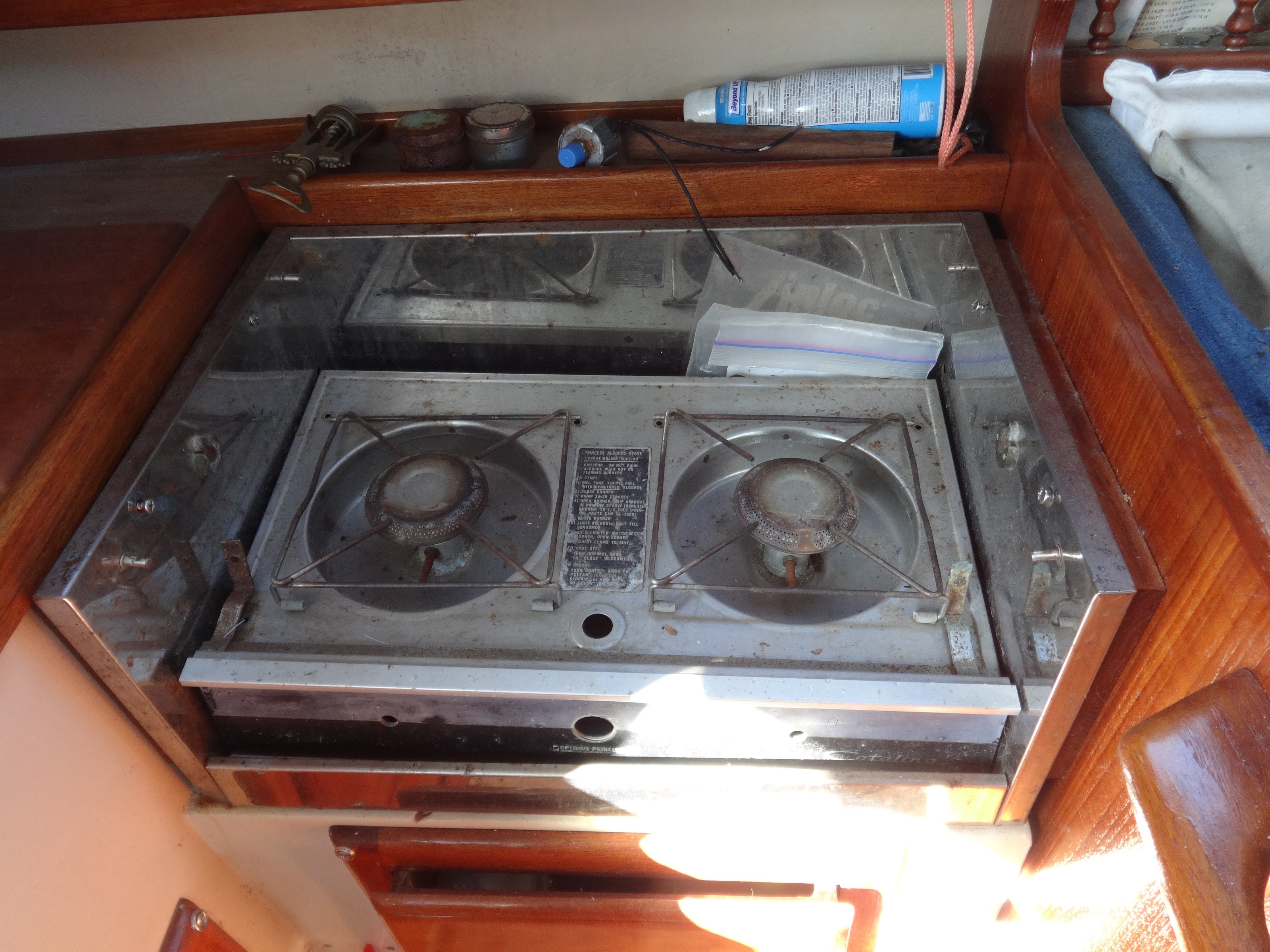

Galley stove converted from alcohol to propane.
It's all there, just needs reassembly.Dinette Area
V-Berth
Quarter Berth
Head Compartment
Storage Lockers
Though Hulls & Seacocks
Bilge Pumps

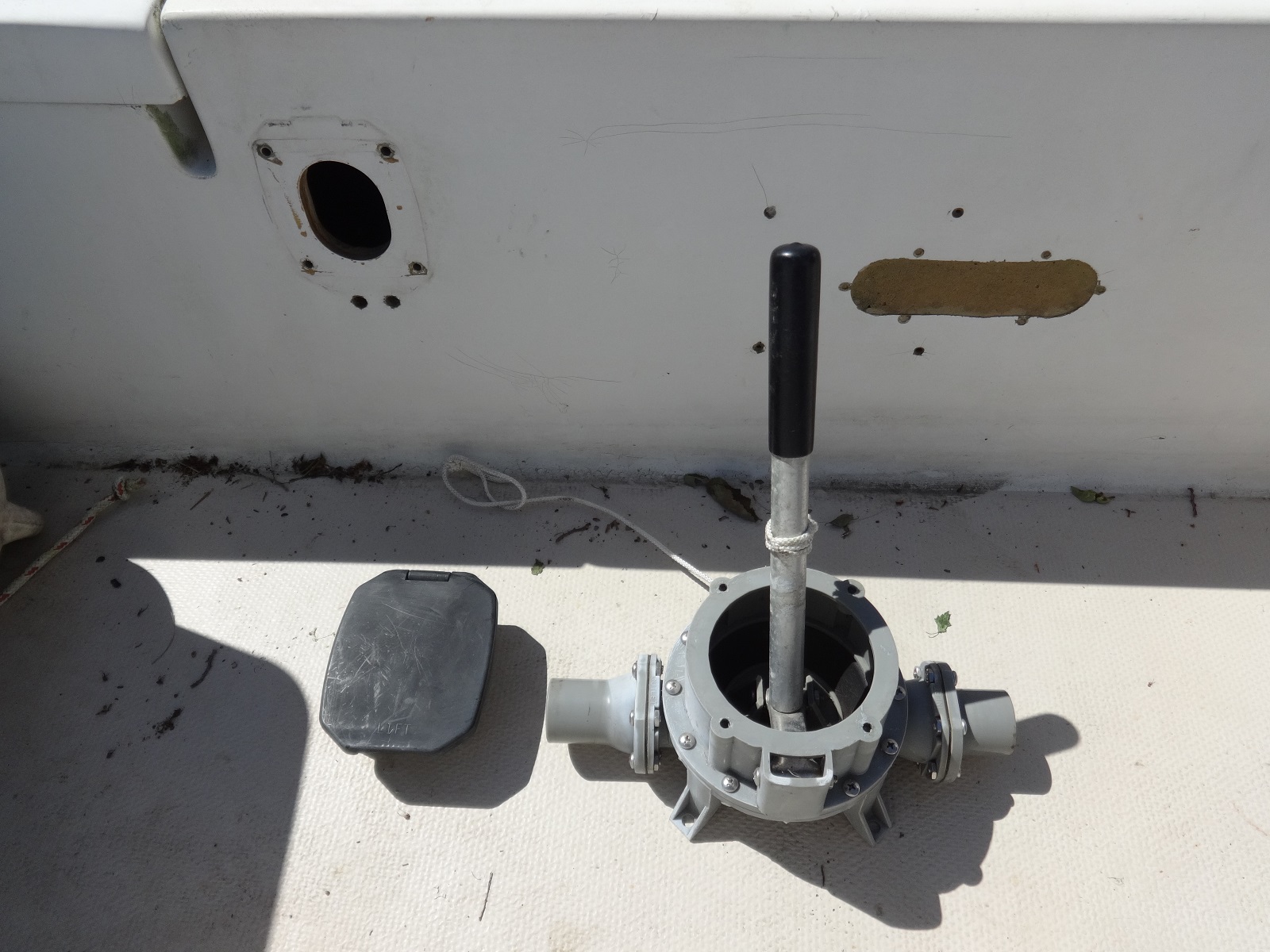

Larger manual bilge pump, before installing in cockpit locker.
Holding Tank

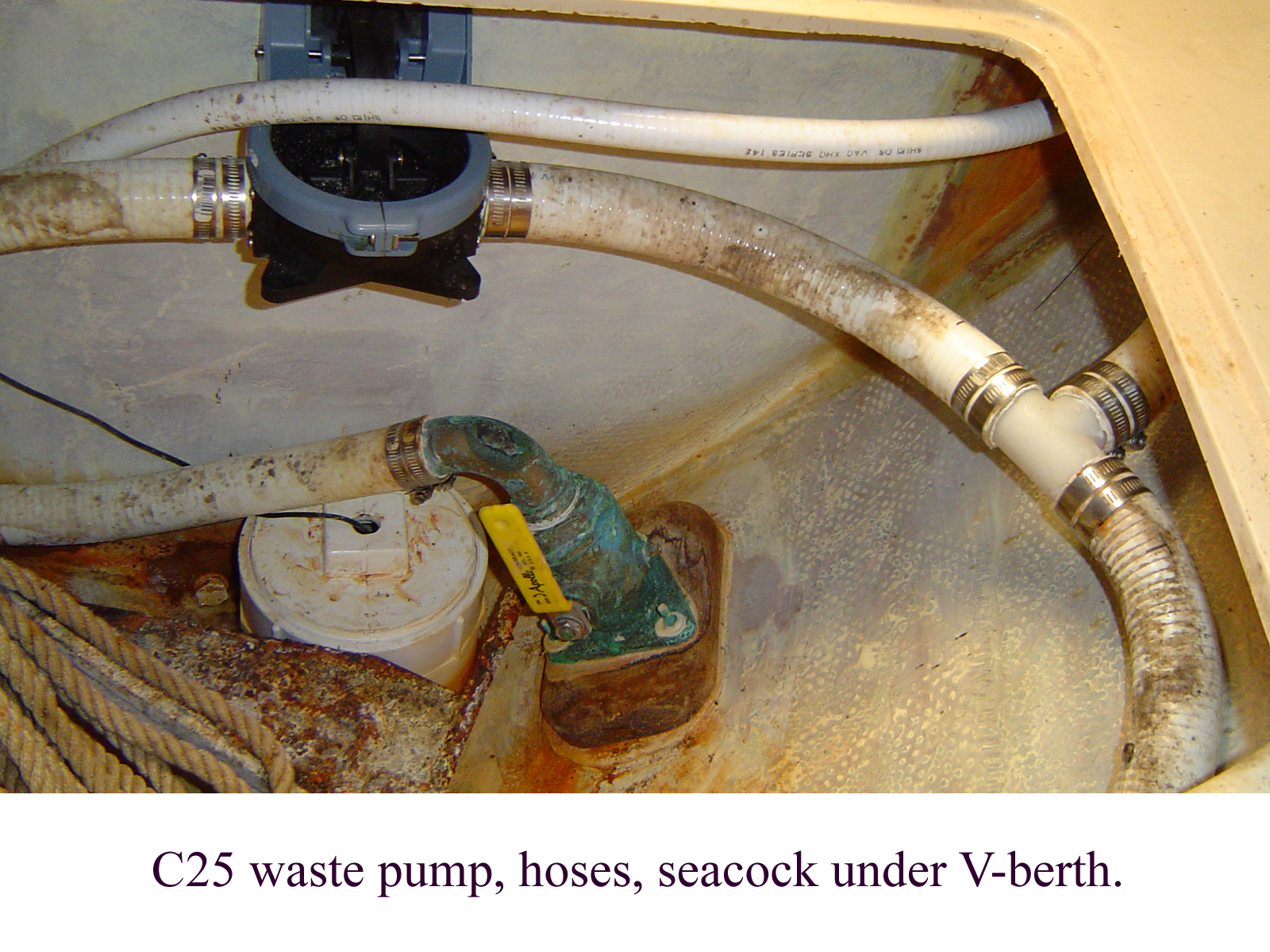

There is a manual offshore discharge pump with bronze through hull and sea cock for the holding tank. White PVC to the right of sea cock is a sonar transducer.

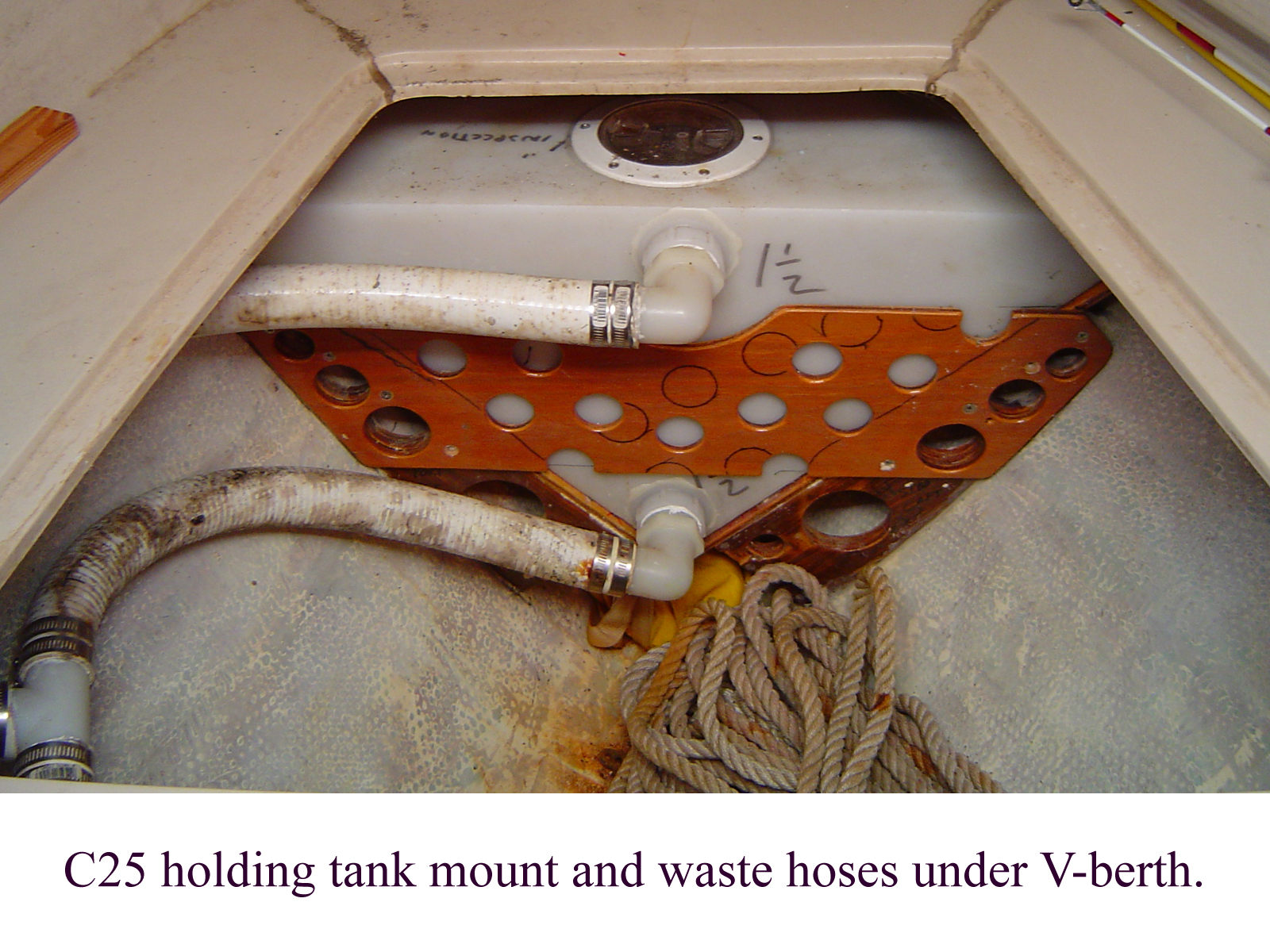

16 gallon holding tank mounted under the V-berth. Top hose is from the head, bottom hose is for pump out.

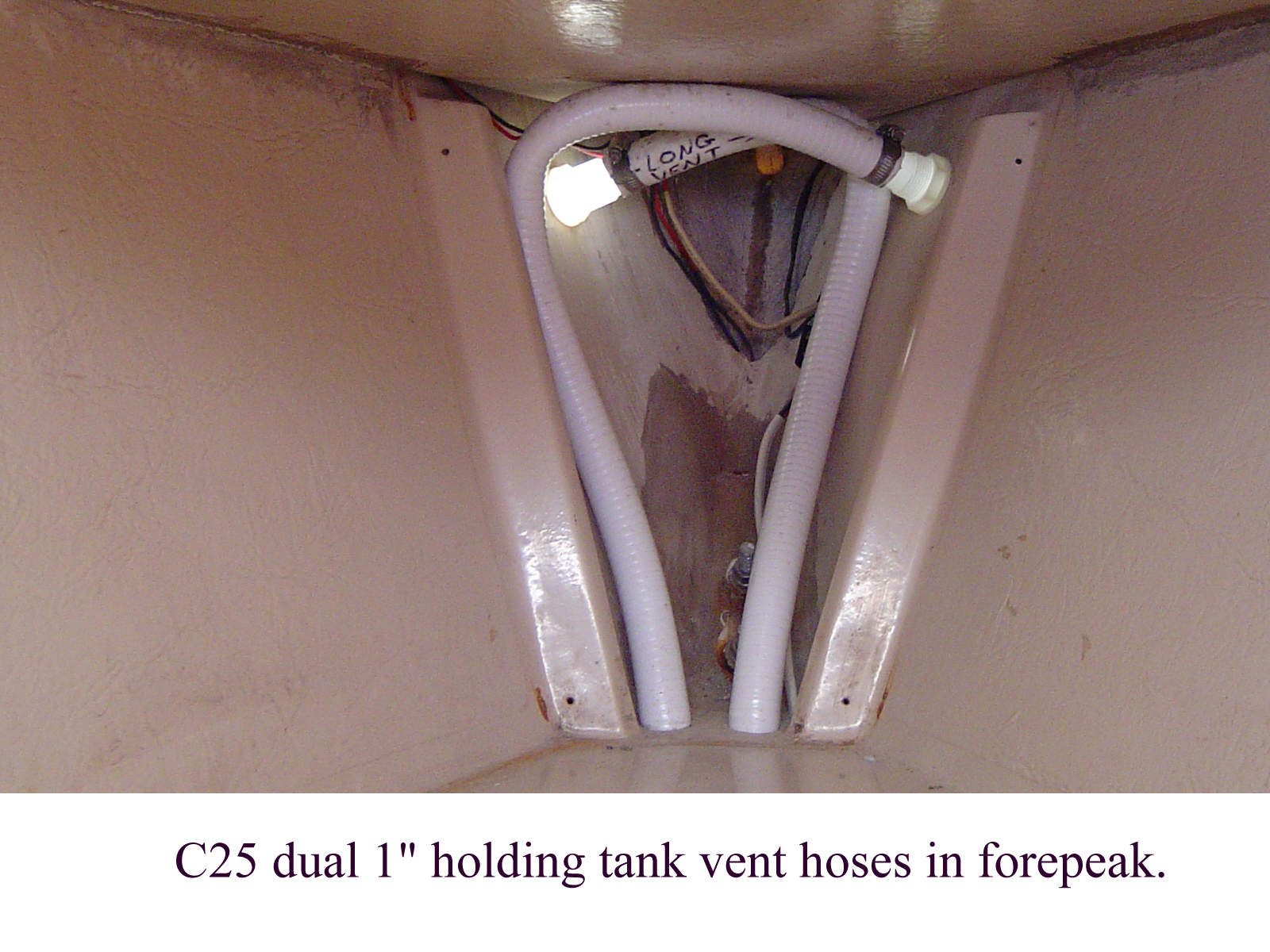

Forepeak showing 1" diameter holding tank vent hoses.
Pressure Water Pump
Ice Box
MSD (head) & Holding Tank
Complete schematic drawings are available.

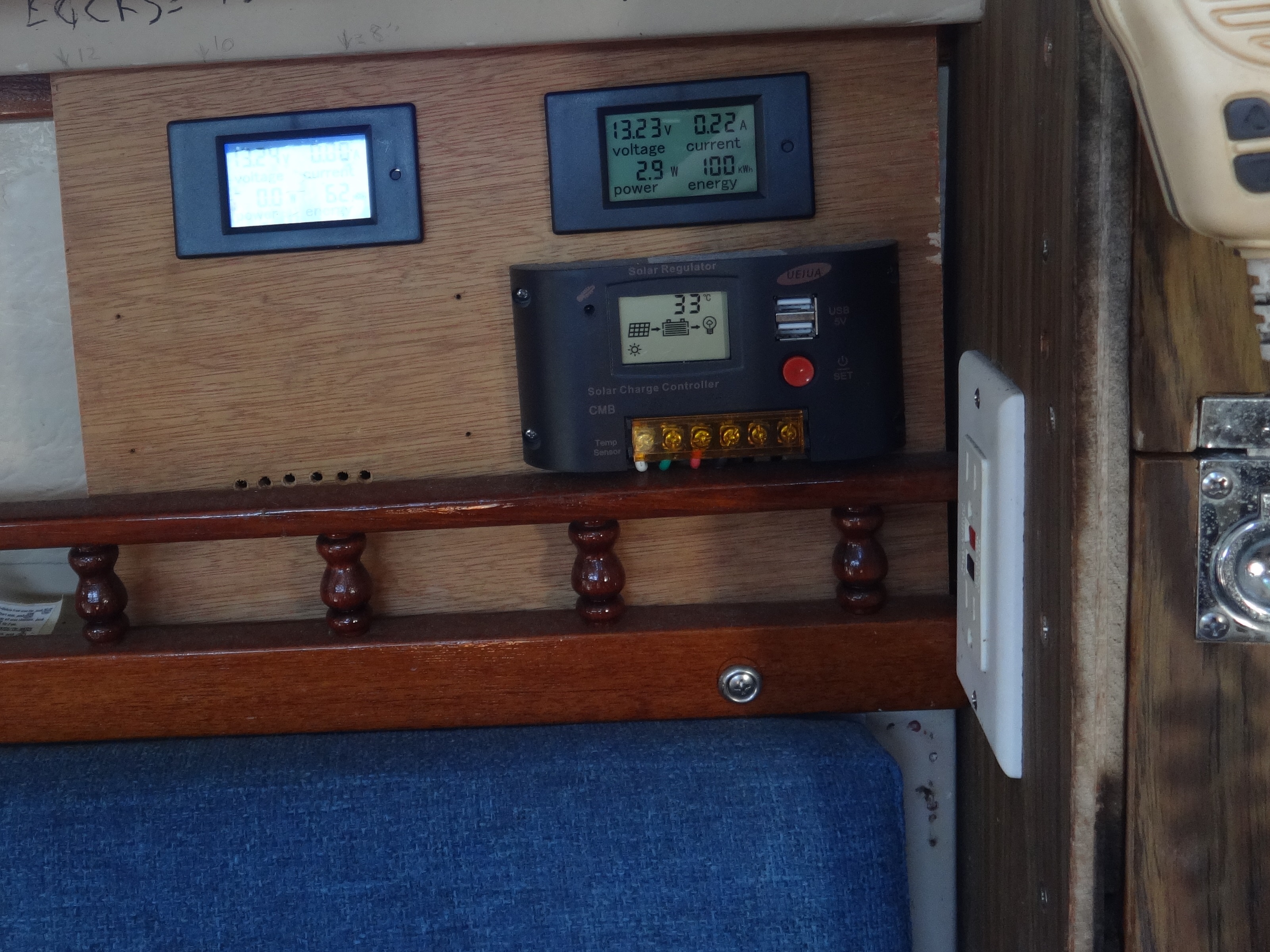

Batteries, Charging System & Power Distribution

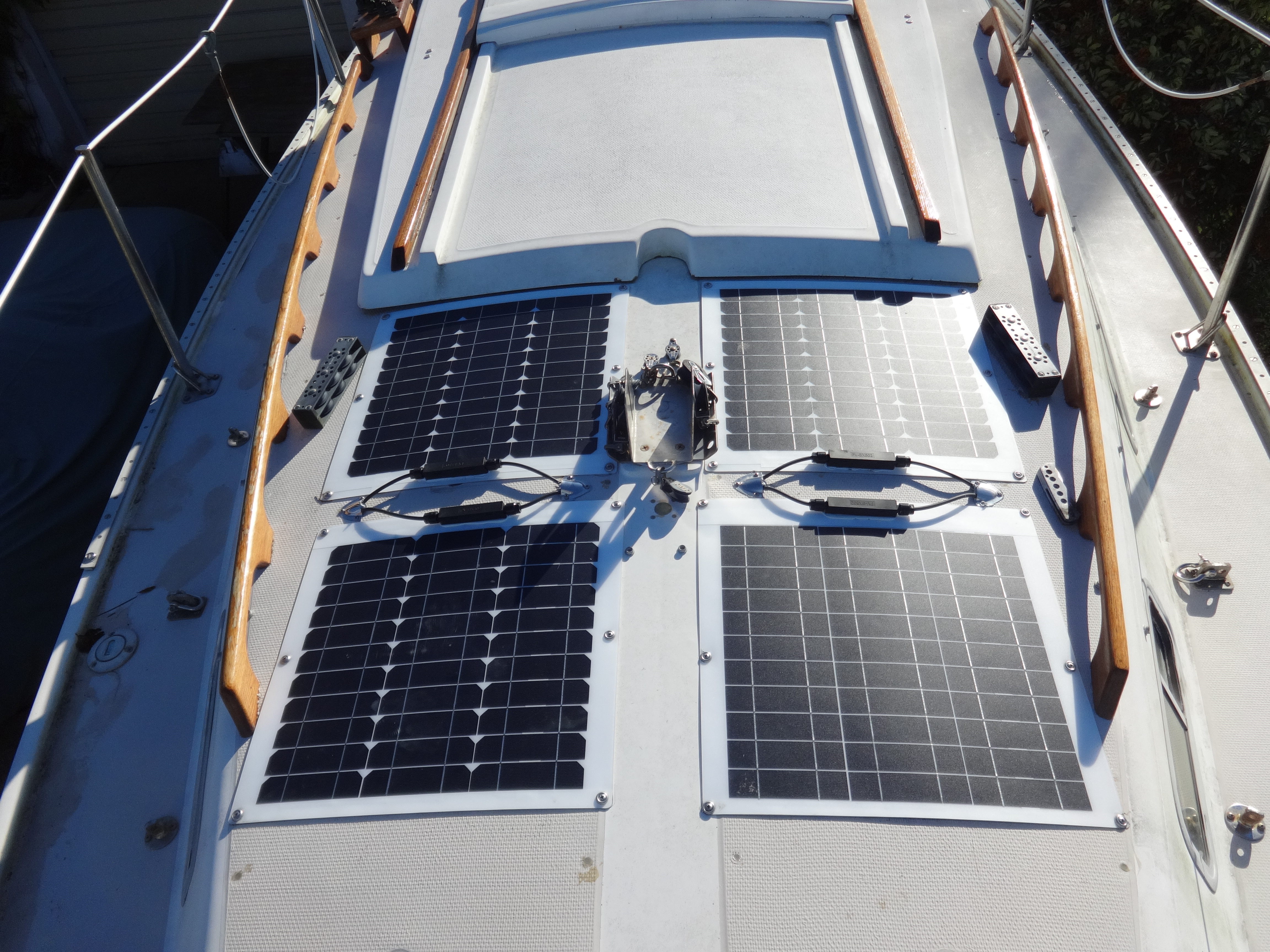

Four 30.W solar panels keep all the batteries charged and provide power while day sailing.
Four 30.W solar panels keep all the batteries charged and provide power while day sailing.Shore Power
Exterior Lighting

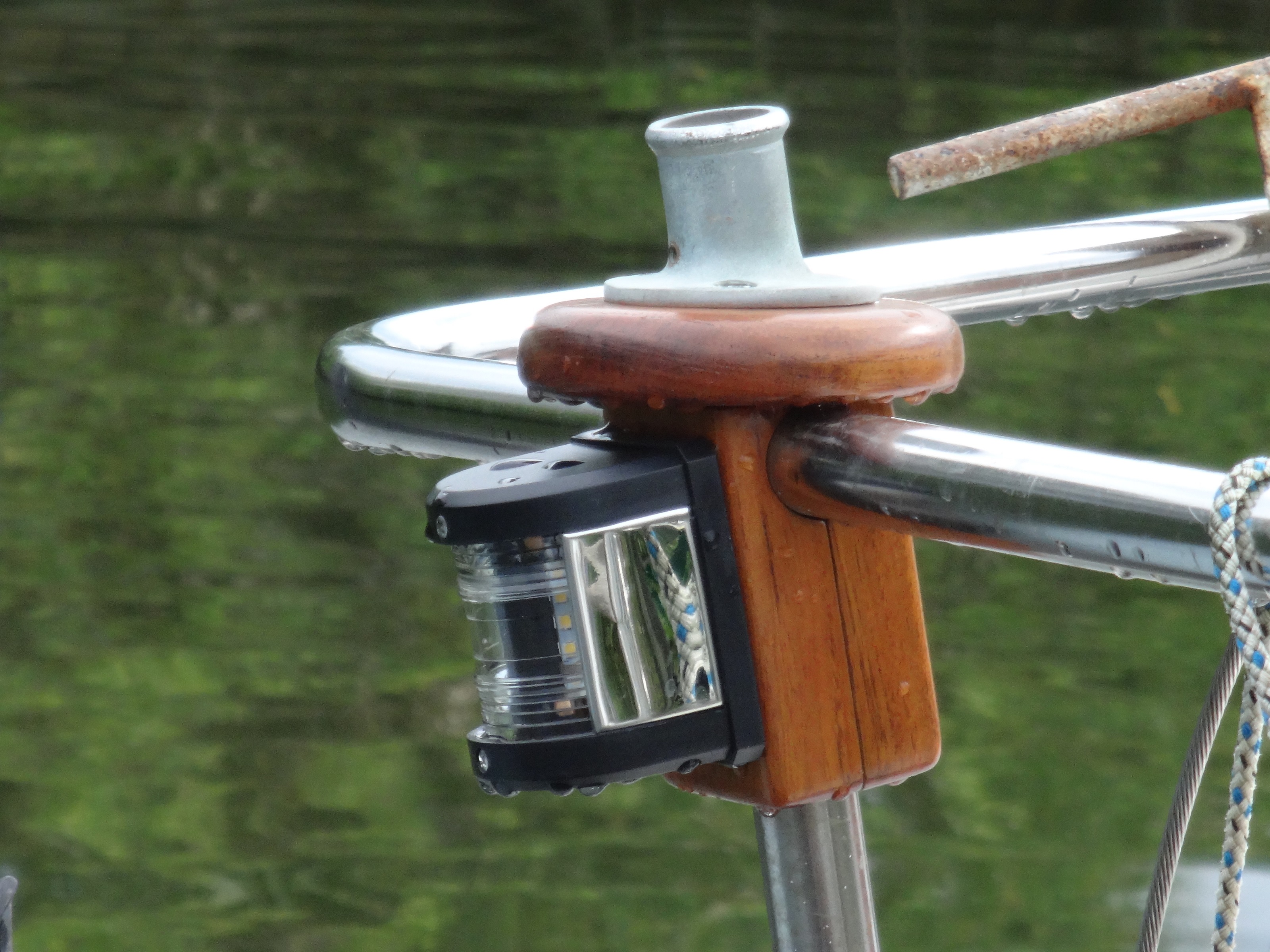

New stern light combined with flag holder on teak mounting bracket.
Wiring is protected inside stern rail.Cabin Lighting

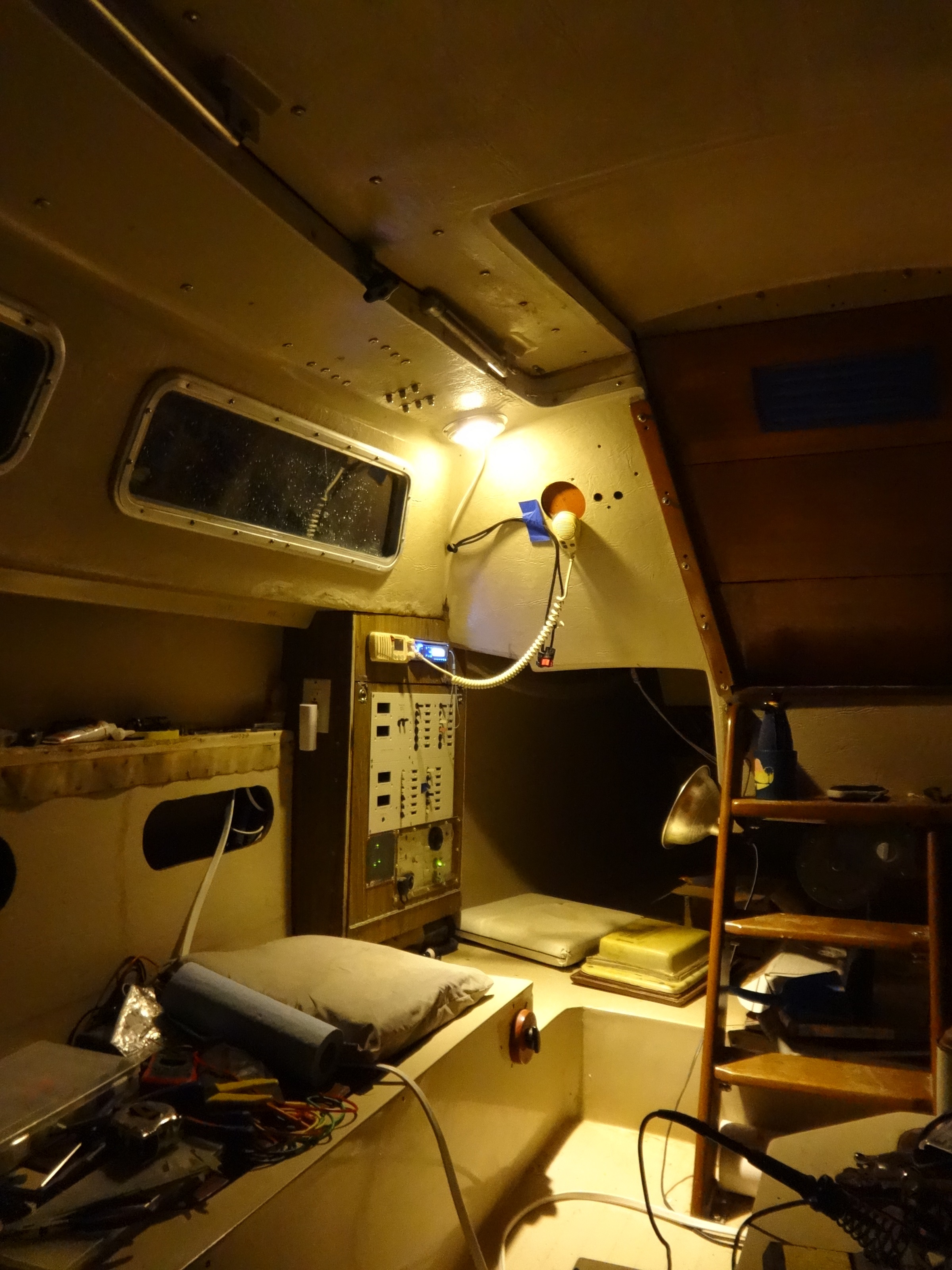

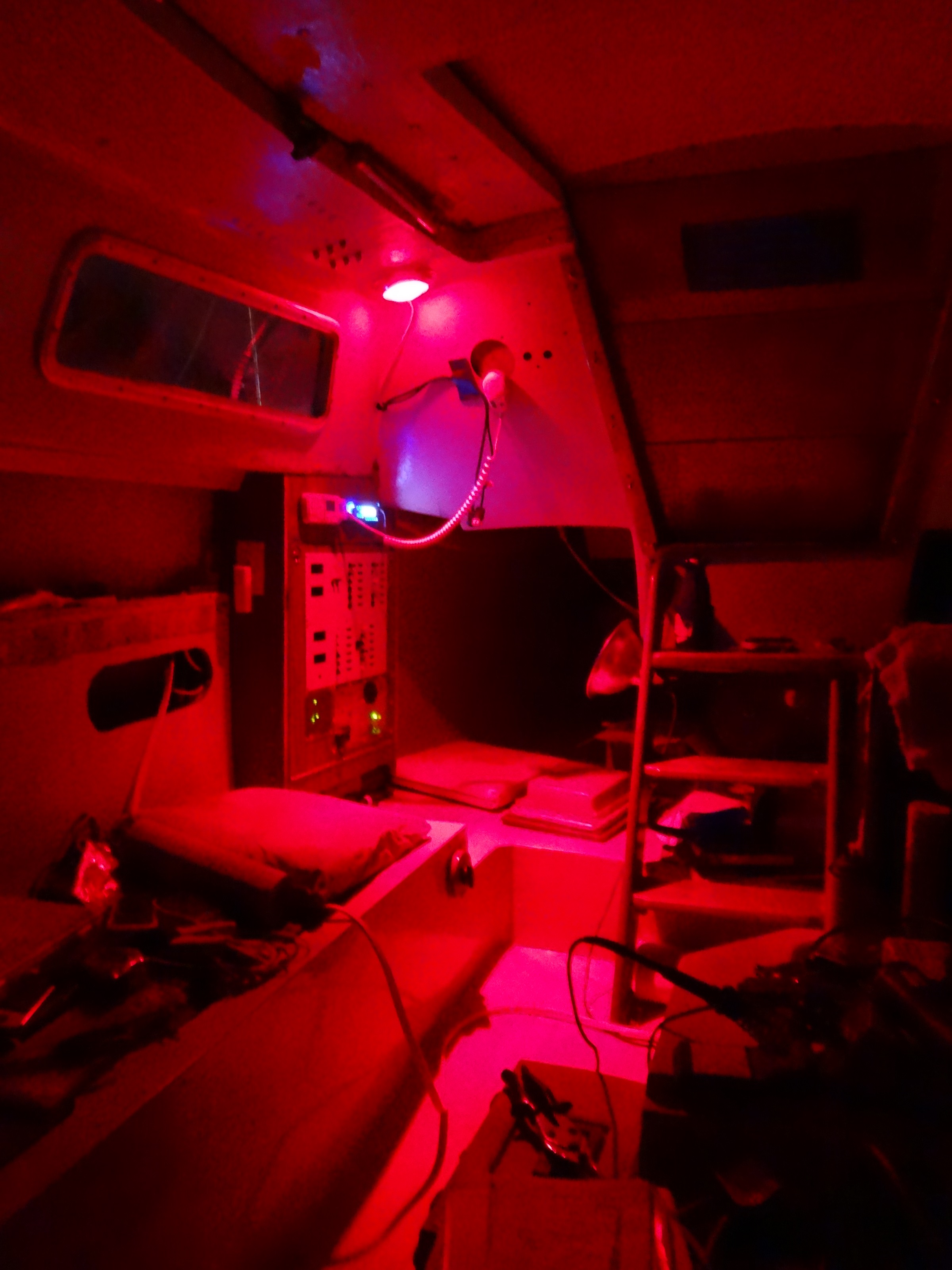

Photos showing an example of the white/red LED cabin lighting.
Each fixture has a 3-way switch, white/off/red.
The white LEDs used are a warm white, not the harsh daylight white ones.
The red LEDs aren't as bright as they appear in this photo,
due to camera's insistance on auto exposure.Navigation System & Autopilot

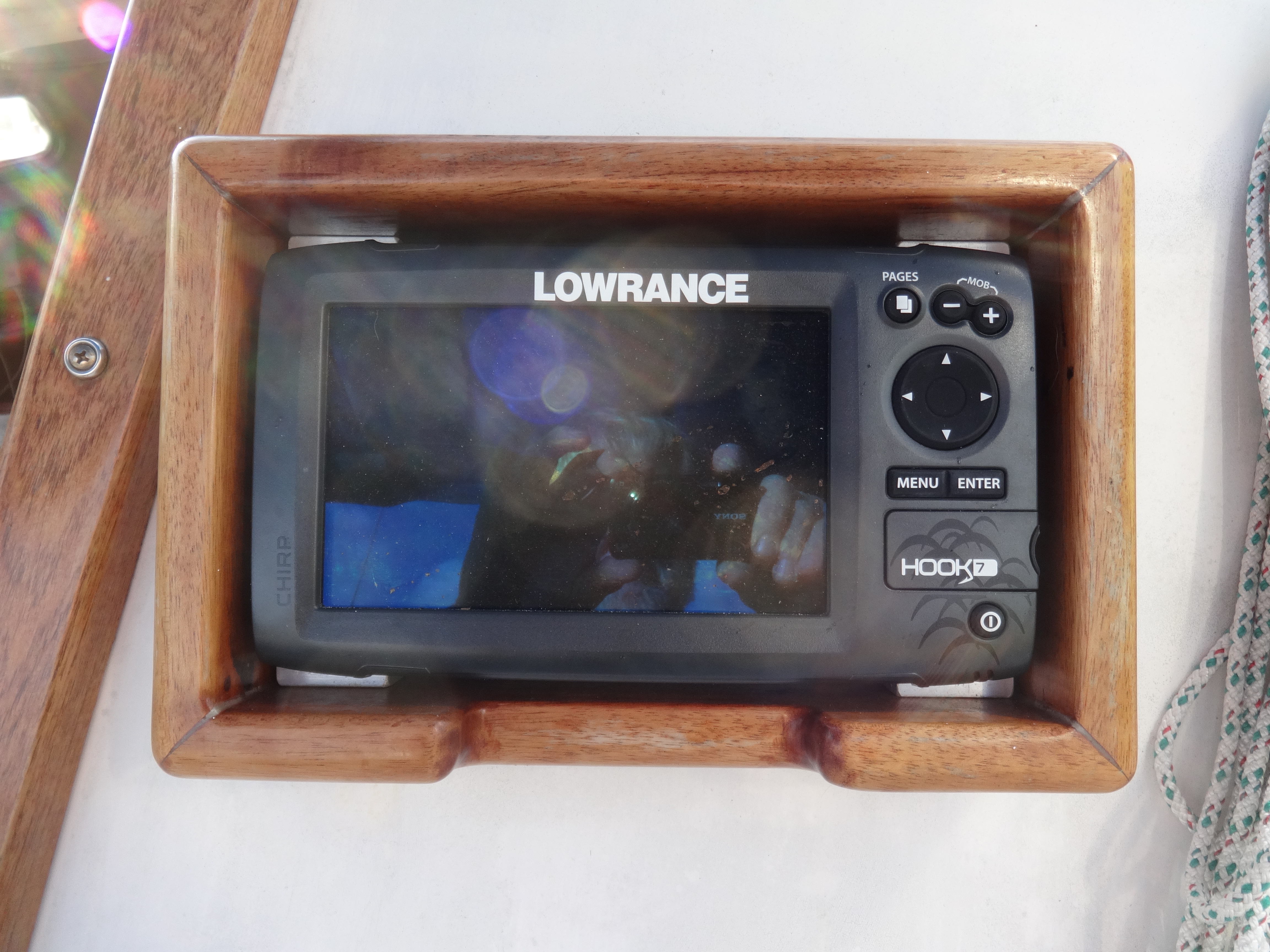

Lowrance Hook7 all-in-one navigation system.

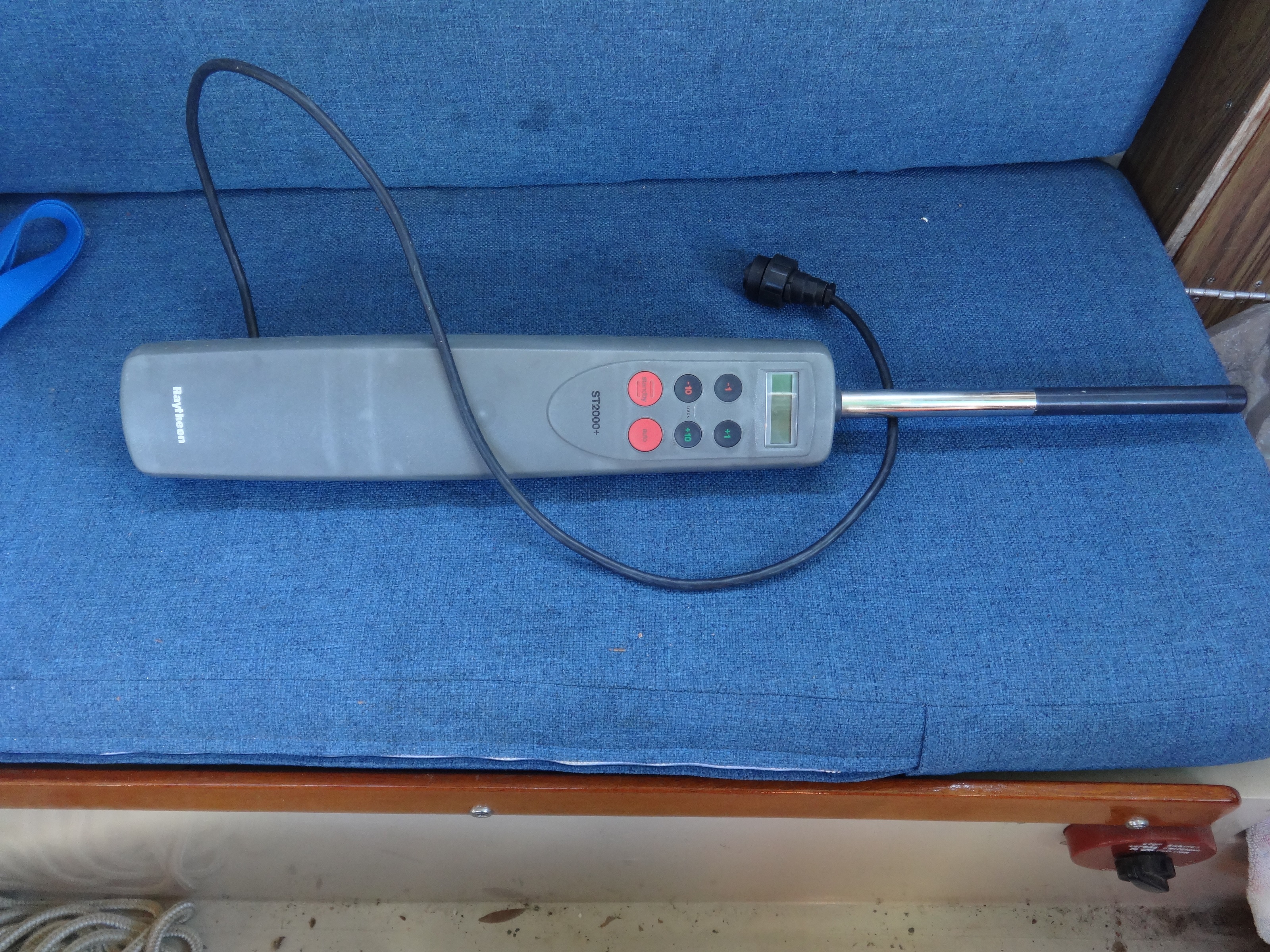

Raymarine ST-2000+ tiller autopilot.
Radios

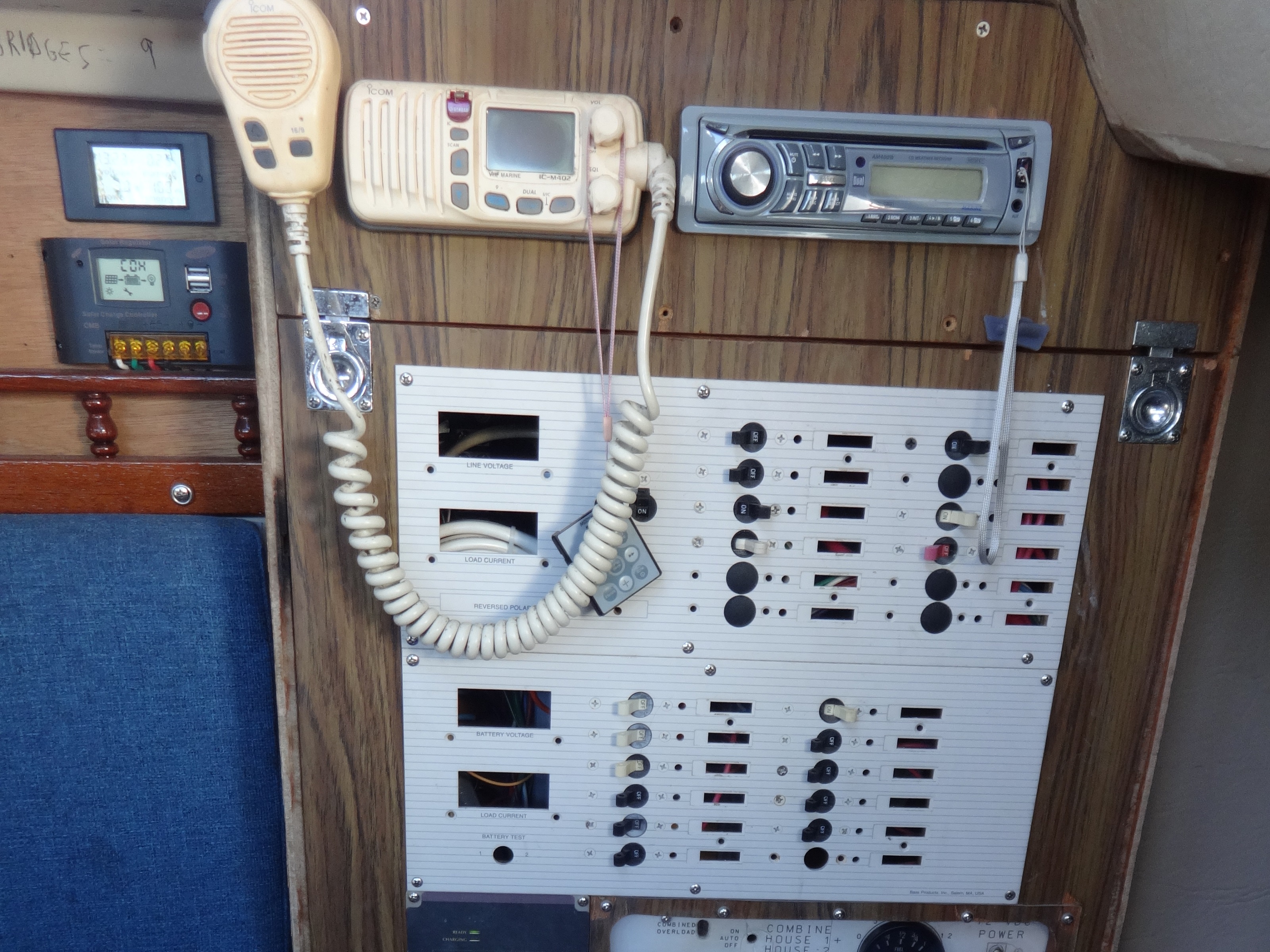

Icom VHF radio beside marine stereo with weather band.HVAC

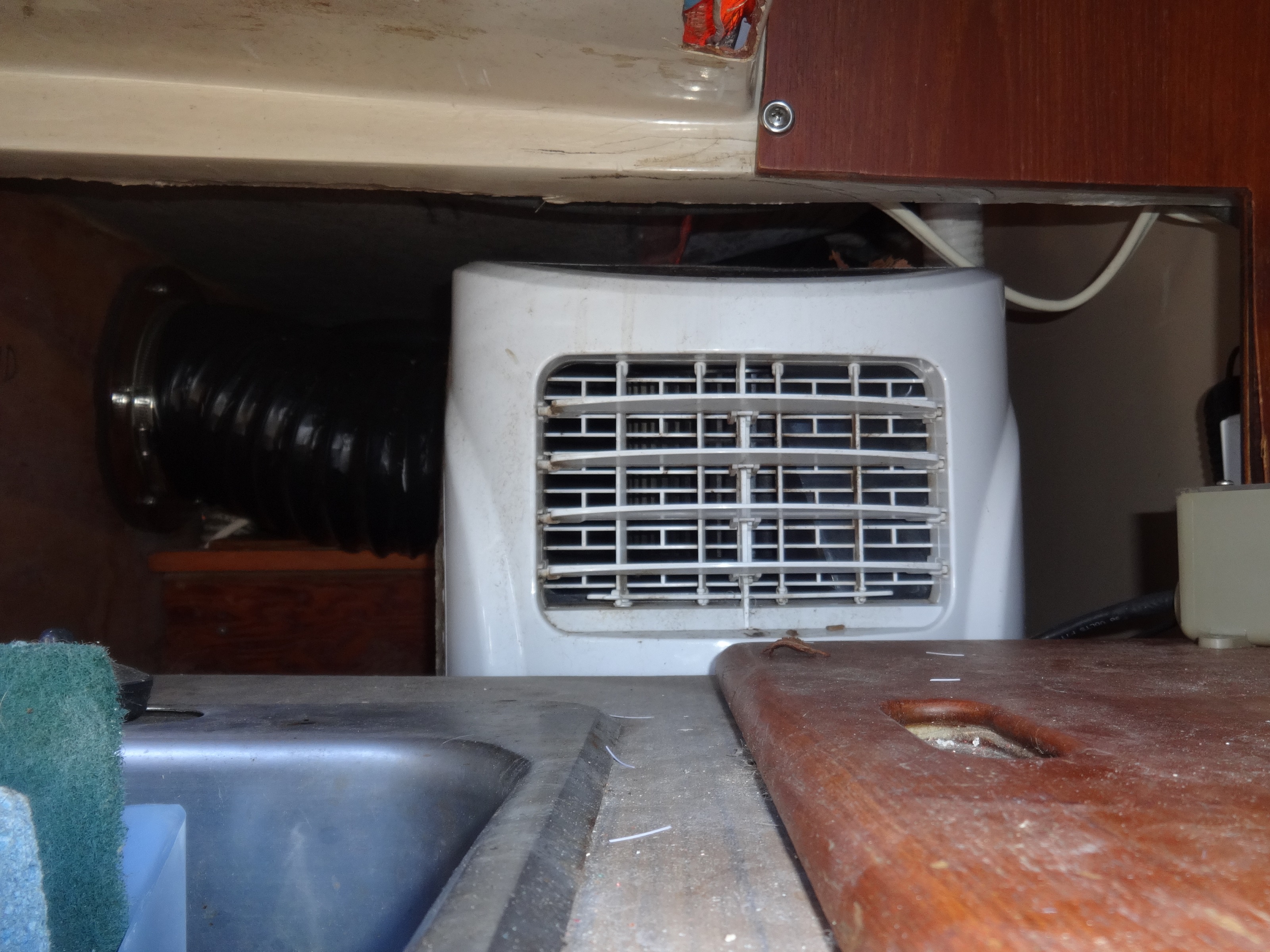

Portable air conditioner installed just aft of the galley.

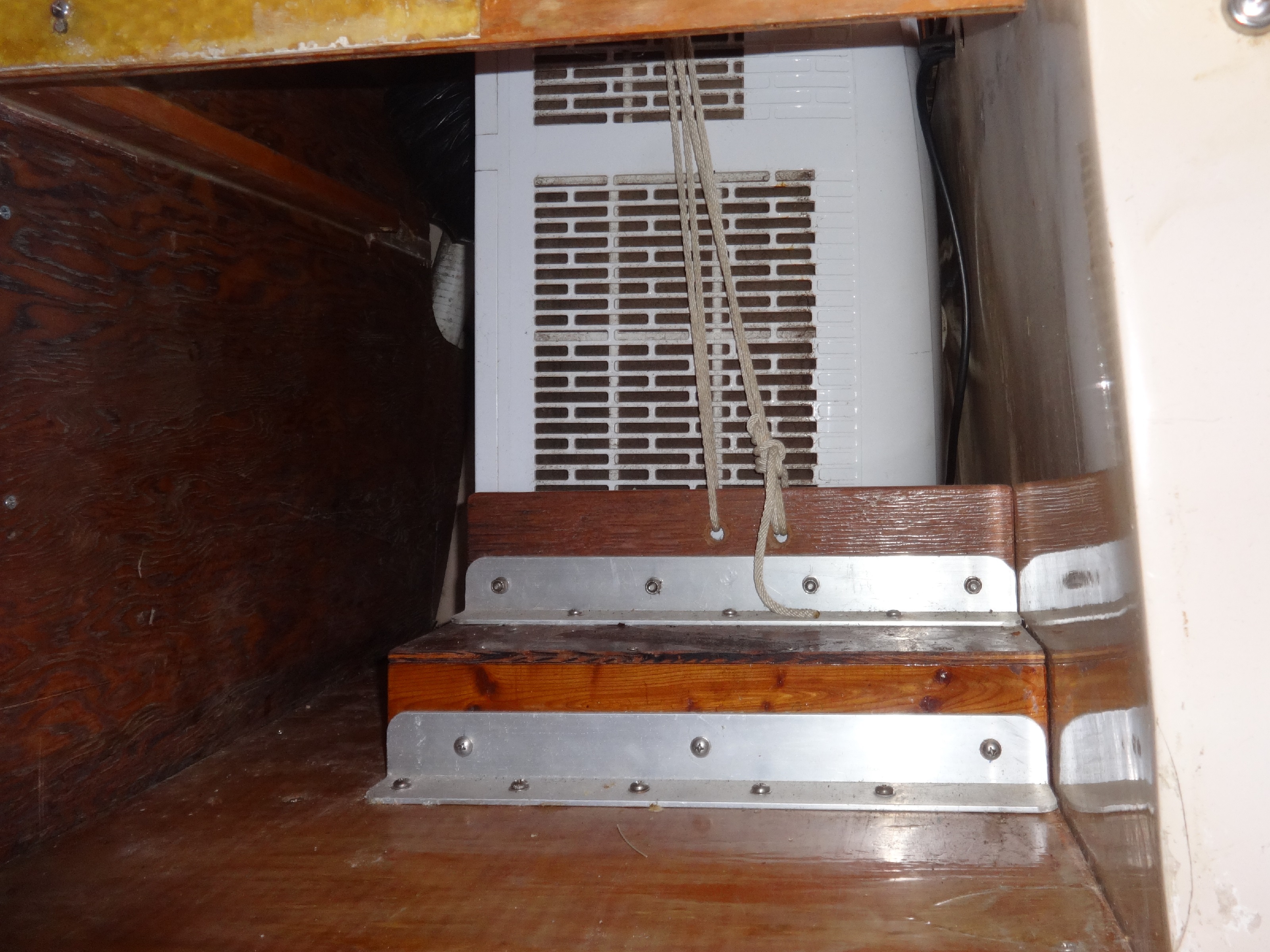

Air conditioner intake filters are accessed through the quarter berth.
Electric Pumps
Standing Rigging

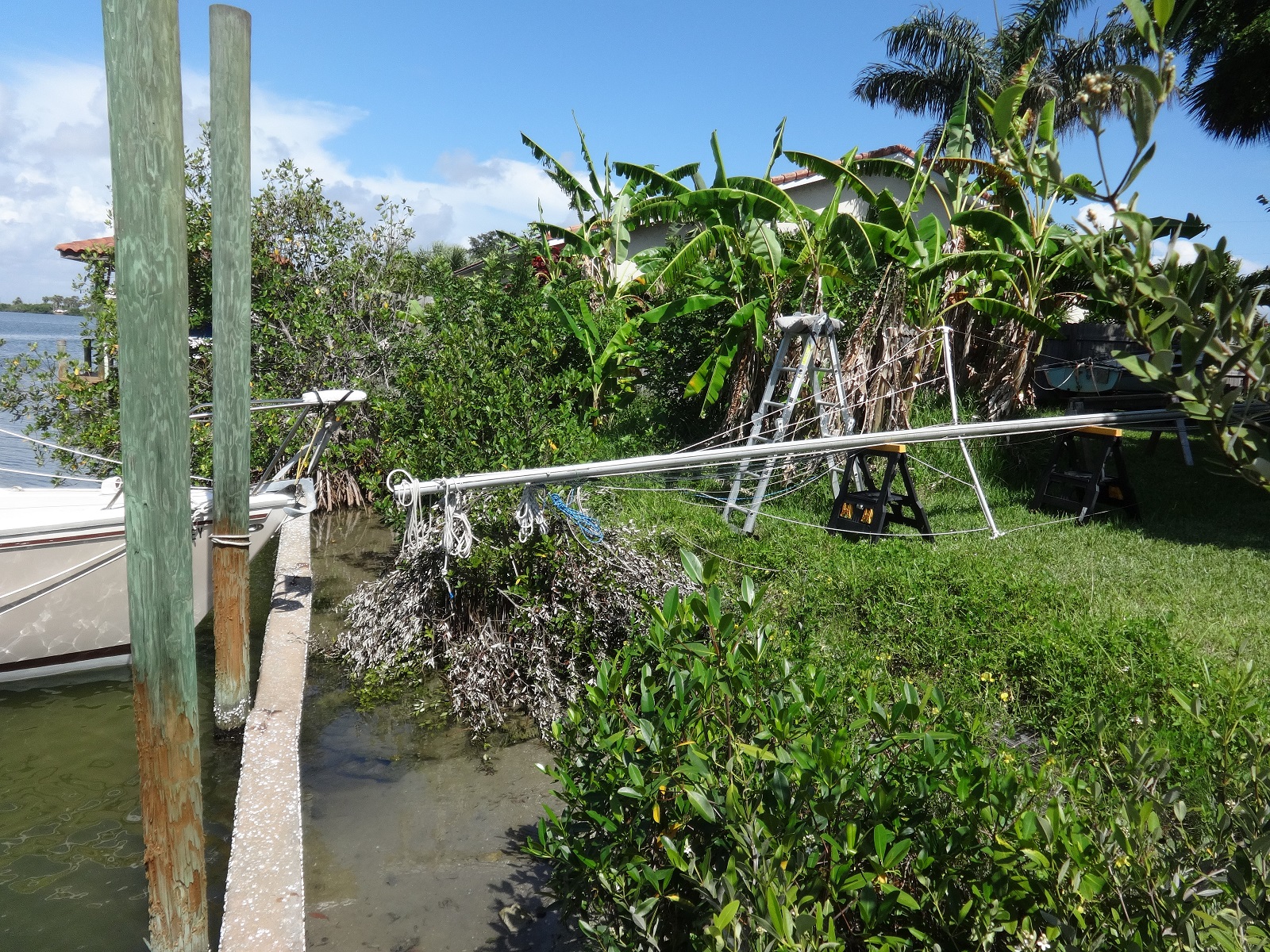

Preparing to step the mast with the bow towards a seawall.
Running Rigging

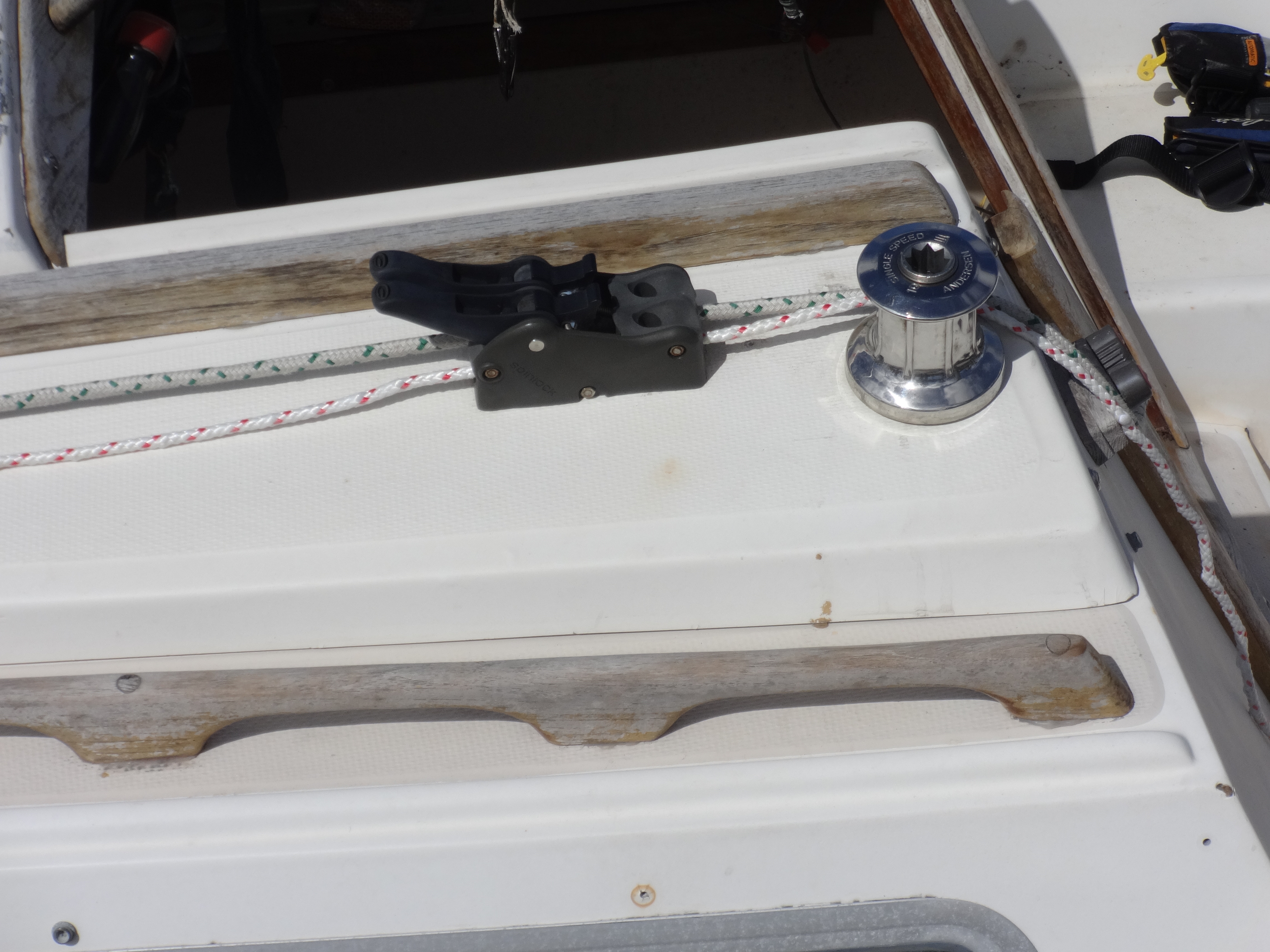

All sail control lines have been routed to the cockpit for safe and convenient single handing. Heavily loaded lines, such as halyards, are tensioned by added cabin top winches and held by line clutches.

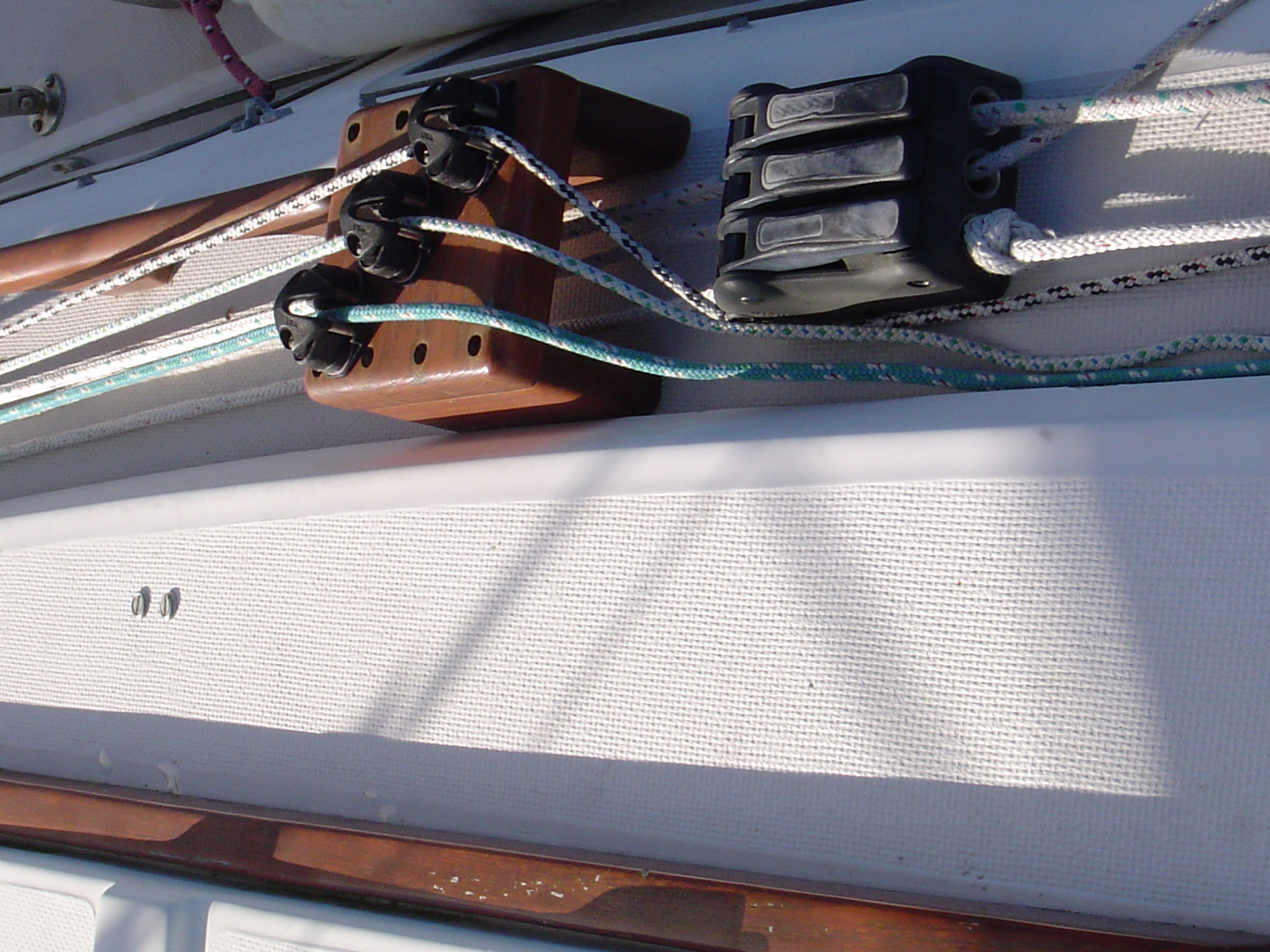

Smaller mainsail control lines are routed to cam cleats.

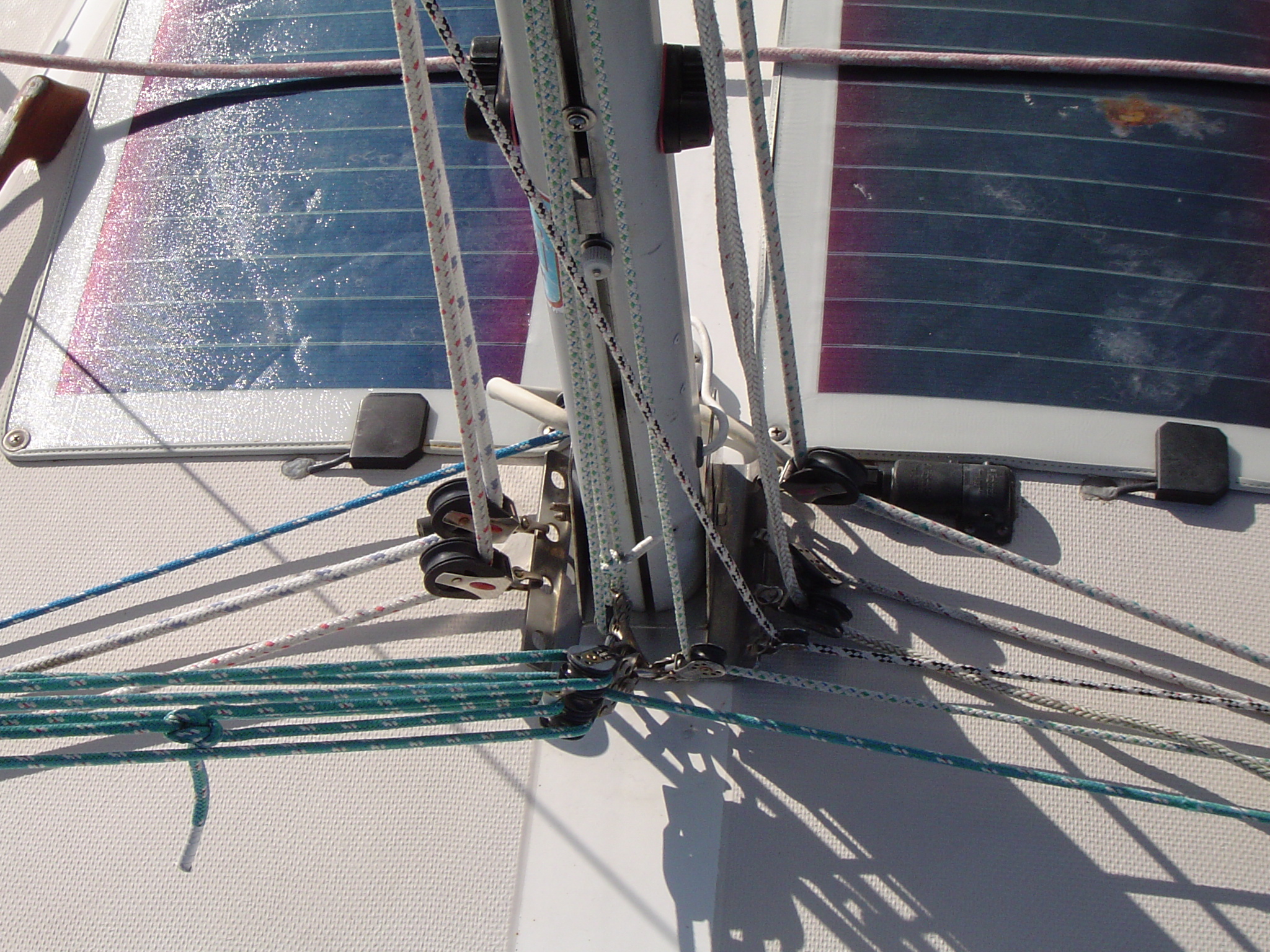

Mainsail control lines have turning blocks at mast step. (Helpful hint: You are definitely going to want to have a large printout of this photo handy the first time you rig the boat for sailing!)

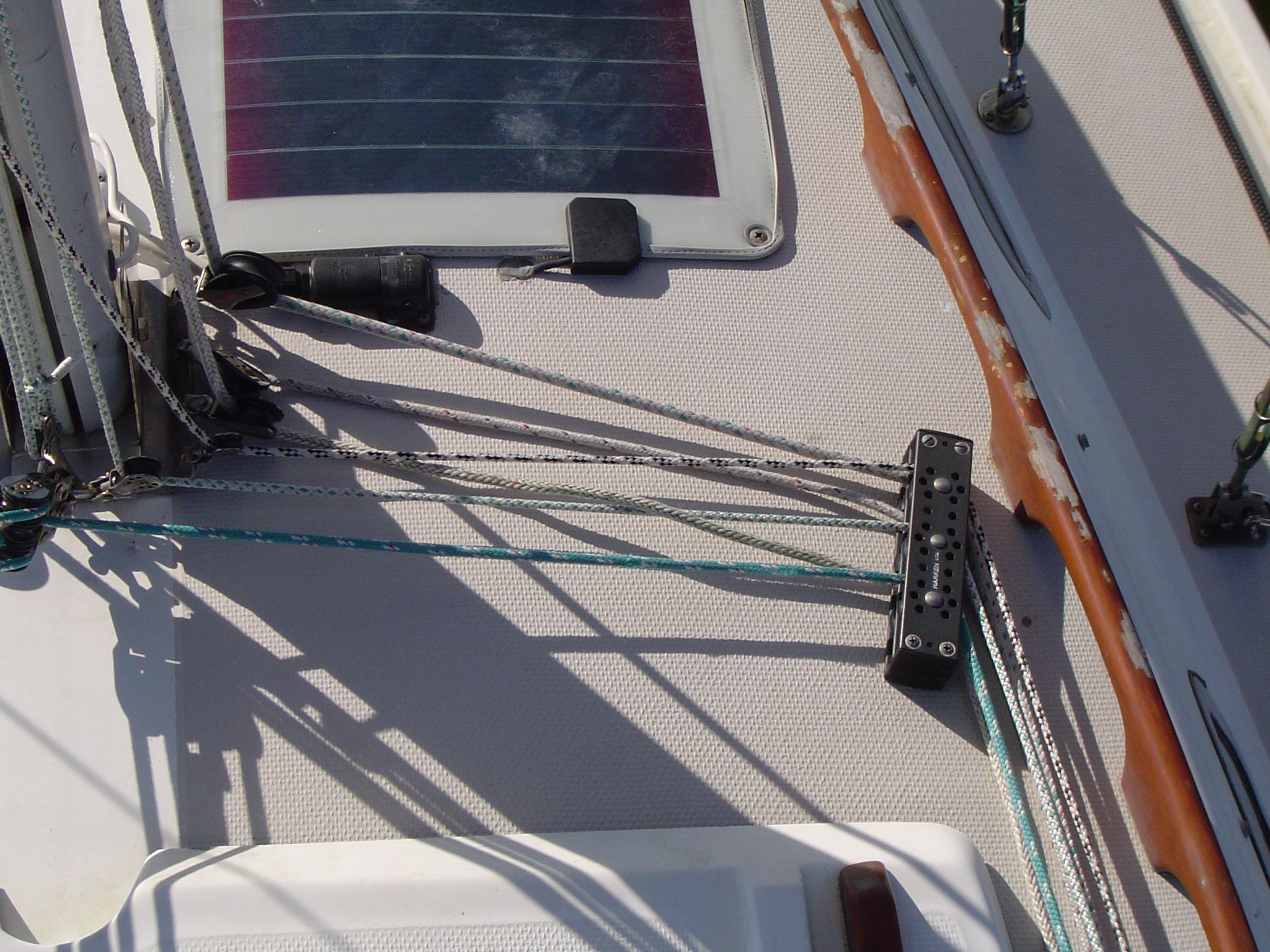

Harken ball bearing 6 sheave deck organizers are used to route lines around pop top. (The 2 old solar panels visible in these photos have recently been replaced with 4 newer, much more powerful ones.)
Photo shows jib flying above deck for fwd visibility. Not shown is a short section of chain added later to adjust tack height off deck.(The 2 old solar panels visible in these photos have recently been replaced with 4 newer, much more powerful ones.)
Do you have an appropriate tow vehicle for a boat this heavy?
To launch and retrieve it I paid a travel-lift.
After owning around half a dozen sailboats over 40 years, I've accumulated lots of related parts, supplies, books, etc. It all needs to go, as this is my last boat. So bring an empty truck for all the boat related stuff I'd like to take.
